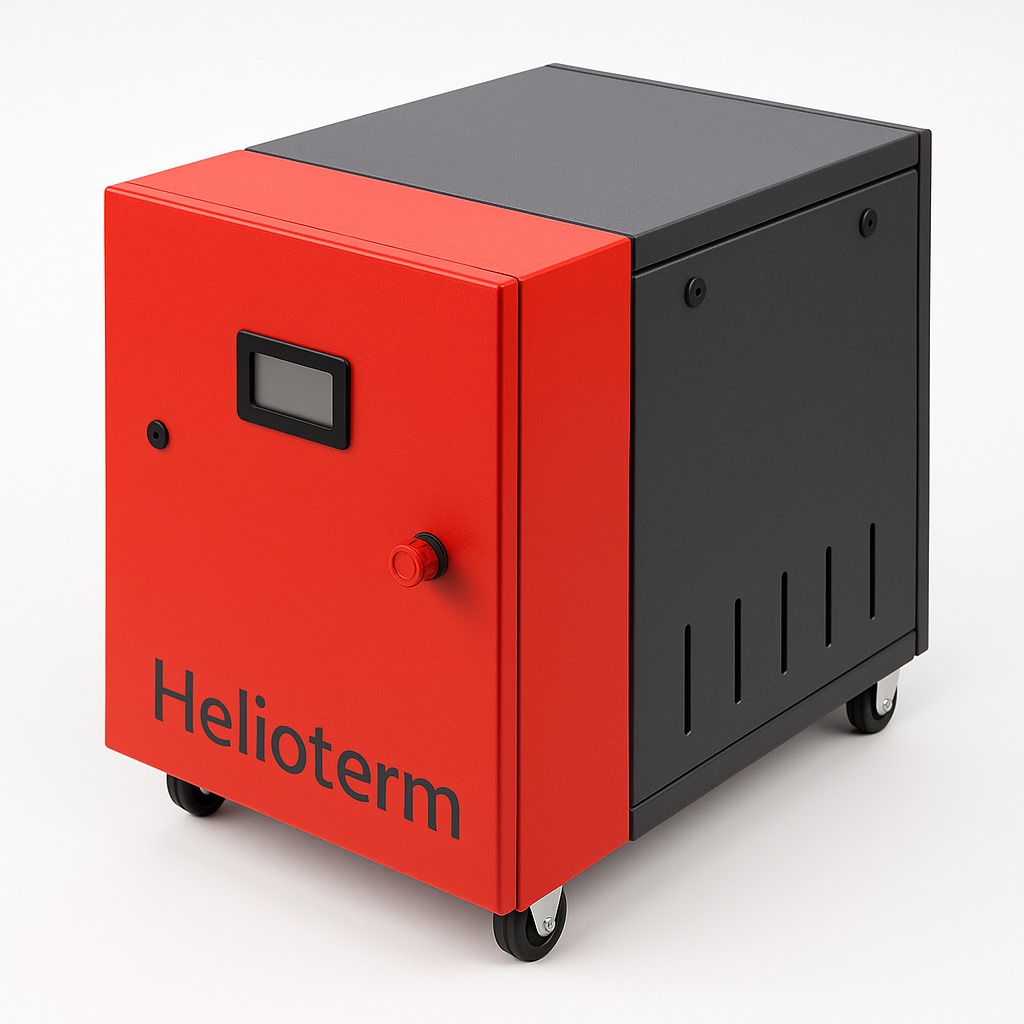

FAQ - Industrial Temperature Controllers

Question 1

What is a temperature controller and what is it for?

Accepted Answer

A temperature controller is a device that controls the temperature of molds, reactors, and industrial processes by circulating water or thermal oil at a precise temperature. It can heat or cool as required by the process, maintaining a constant temperature with an accuracy of ±0.1°C.

Question 2

What is the difference between a water and an oil temperature controller?

Accepted Answer

Water temperature controllers operate up to ~120°C (pressurized up to 180°C) and are more economical. Thermal oil temperature controllers reach up to 250°C, being necessary for high-temperature processes such as rubber molding, vulcanization, and chemical reactions.

Question 3

Which temperature controller to use for a plastic injection machine?

Accepted Answer

For plastic injection machines, we recommend water temperature controllers from 6 to 24 kW, depending on the mold size. The typical temperature ranges from 40°C to 120°C depending on the polymer being processed. For large molds or multiple zones, consider higher power temperature controllers or multiple units.

Question 4

How to size a temperature controller?

Accepted Answer

Sizing considers: mass of the mold/equipment, desired temperature, heating time, thermal losses, and process cycle. Rule of thumb: 1 kW for every 10-15 kg of steel to be heated in 30 minutes. Our engineering department performs the precise calculation for free.

Question 5

Temperature controller or chiller: what's the difference?

Accepted Answer

Temperature controllers control temperature (they heat AND cool) with high precision, ideal for molds and processes. Chillers only cool, providing chilled water to multiple consumption points. Use a temperature controller when you need precise control per zone; use a chiller for general cooling.

Question 6

What is the lifespan of an industrial temperature controller?

Accepted Answer

With proper maintenance, Helioterm temperature controllers last 15-20 years. Electric heating elements have a lifespan of 3-5 years depending on use. Quality pumps last 8-10 years. We offer spare parts and preventive maintenance contracts.

Question 7

Can the temperature controller work with negative temperatures?

Accepted Answer

Yes, our temperature controllers can operate down to -20°C using a glycol solution as the fluid. This configuration is used in processes that require rapid cooling or temperatures below ambient, such as molding certain polymers or pharmaceutical processes.

Model	Heating Power	Pump	Reservoir	Fluid	Max. Temperature	Electrical Data	Dimensions	Weight	Connections	Control
HTR 06 kW	6 kW	1,70 m³/h / 2,5 bar	12 L	Water or Oil	Água: 120°C / Óleo: 250°C	3F (220/380/440 VCA) + N + T/60Hz / 6,5 kVA / 17,1 A / 9,9 A / 8,5 A	450 x 720 x 750 mm	55 Kg	3/4" Entrada/Saída	PID Microprocessado (±0,5°C)
HTR 09 kW	9 kW	2,60 m³/h / 2,5 bar	12 L	Water or Oil	Água: 120°C / Óleo: 250°C	3F (220/380/440 VCA) + N + T/60Hz / 9,5 kVA / 25,0 A / 14,4 A / 12,5 A	450 x 720 x 750 mm	60 Kg	3/4" Entrada/Saída	PID Microprocessado (±0,5°C)
HTR 12 kW	12 kW	3,50 m³/h / 2,5 bar	18 L	Water or Oil	Água: 120°C / Óleo: 250°C	3F (220/380/440 VCA) + N + T/60Hz / 12,5 kVA / 32,8 A / 19,0 A / 16,4 A	450 x 720 x 750 mm	70 Kg	1" Entrada/Saída	PID Microprocessado (±0,5°C)
HTR 18 kW	18 kW	5,00 m³/h / 3,0 bar	25 L	Water or Oil	Água: 120°C / Óleo: 250°C	3F (220/380/440 VCA) + N + T/60Hz / 18,5 kVA / 48,6 A / 28,1 A / 24,3 A	670 x 1070 x 900 mm	75 Kg	1" Entrada/Saída	PID Microprocessado (±0,5°C)
HTR 24 kW	24 kW	7,00 m³/h / 3,0 bar	30 L	Water or Oil	Água: 120°C / Óleo: 250°C	3F (220/380/440 VCA) + N + T/60Hz / 24,5 kVA / 64,4 A / 37,3 A / 32,2 A	670 x 1070 x 900 mm	82 Kg	1.1/4" Entrada/Saída	PID Microprocessado (±0,5°C)
