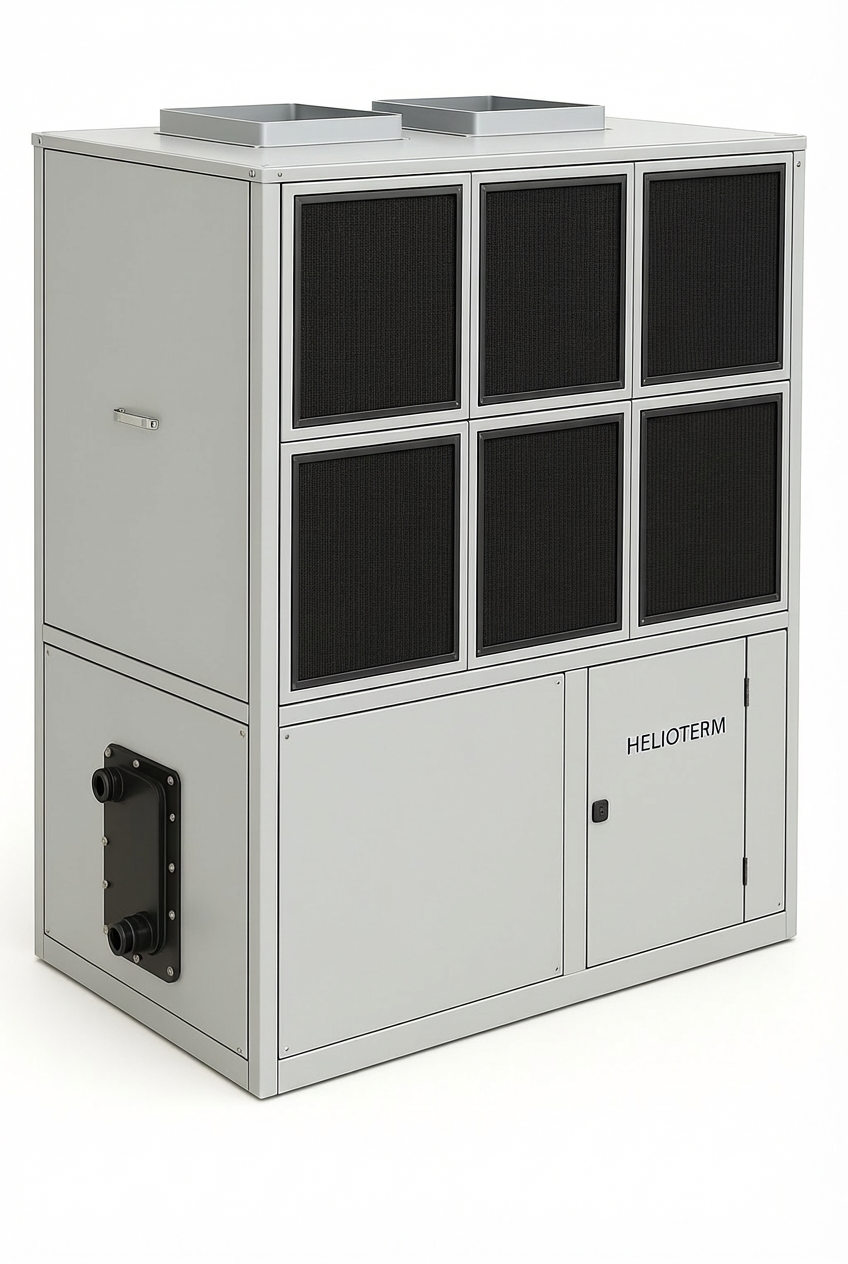

Industrial Self-Contained
3 to 50 TR - Air & Water Cooled
Self-contained air conditioning systems that integrate all components in a single unit. Complete solution for HVAC in industrial, commercial environments and technical rooms with simplified installation.
Capacity
3–50 TR
Air Flow
1.5–25k m³/h
Refrigerant
R-410A / R-32
COP
3.0–3.8
Filtration
G4 + F7
Voltage
220/380/440V
Control
ModBus RTU
Cabinet
Galv. Steel
Model Range
Available in two versions: air-cooled (HSC-AR) for installation with outdoor air access, and water-cooled (HSC-AG) for fully enclosed environments.
| Model | TR | kW | Airflow (m³/h) | Power (kW) | Compressor | Weight (kg) | Dimensions W×D×H (mm) |
|---|---|---|---|---|---|---|---|
| HSC-AR-030 | 3 | 10.5 | 1,500 | 3.8 | Scroll | 280 | 800 x 600 x 1,400 |
| HSC-AR-050 | 5 | 17.6 | 2,500 | 6.2 | Scroll | 380 | 1,000 x 700 x 1,500 |
| HSC-AR-075 | 7.5 | 26.4 | 3,500 | 9.0 | Scroll | 480 | 1,200 x 800 x 1,600 |
| HSC-AR-100 | 10 | 35.2 | 5,000 | 11.5 | Scroll | 620 | 1,400 x 900 x 1,800 |
| HSC-AR-150 | 15 | 52.8 | 7,500 | 17.0 | Scroll | 850 | 1,800 x 1,000 x 2,000 |
| HSC-AR-200 | 20 | 70.3 | 10,000 | 22.5 | Scroll | 1,100 | 2,000 x 1,100 x 2,200 |
| HSC-AR-250 | 25 | 87.9 | 12,500 | 28.0 | Scroll | 1,350 | 2,200 x 1,200 x 2,300 |
| HSC-AR-300 | 30 | 105.5 | 15,000 | 33.5 | Scroll | 1,600 | 2,400 x 1,300 x 2,400 |
| HSC-AR-400 | 40 | 140.7 | 20,000 | 44.0 | Scroll Tandem | 2,100 | 2,800 x 1,400 x 2,500 |
| HSC-AR-500 | 50 | 175.8 | 25,000 | 55.0 | Scroll Tandem | 2,600 | 3,200 x 1,500 x 2,600 |
* Reference data at nominal conditions: Return temp. 24°C DB / 17°C WB, Outdoor temp. 35°C. Values may vary according to project conditions. Consult Helioterm for specific sizing.
Constructive Details
Each component is designed for maximum durability, efficiency and ease of maintenance in demanding industrial environments.
Cabinet
Galvanized steel structure with electrostatic powder coating. Removable panels with quick-release latches for easy access to internal components. Corrosion-resistant finish.
Evaporator Coil
Copper tubes with high-efficiency aluminum fins. Direct expansion with liquid distributor. Optimized spacing for maximum heat exchange and easy cleaning.
Compressor
High-efficiency hermetic scroll compressors with integrated thermal protection. Mounted on vibration dampers. Models above 30 TR use tandem configuration for greater reliability.
Fans
Double-inlet centrifugal fans with high-efficiency motor (IE3). Dynamic balancing for quiet operation. EC fan option with variable speed control.
Filtration
Dual filtration system: G4 pre-filter (washable) + F7 fine filter. Quick-fit rails for tool-free replacement. HEPA H13 absolute filter option for critical environments.
Condensate Tray
AISI 304 stainless steel tray with anti-condensation thermal insulation. Slope for gravity drainage. Drain connection with integrated siphon.
Insulation
Closed-cell elastomeric foam thermal-acoustic insulation (25mm). Fire reaction class M1. Noise reduction up to 15 dB(A) compared to non-insulated cabinet.
Controller
Microprocessor controller with LCD touchscreen display. Weekly time programming, alarms with history, PID temperature control, ModBus RTU/TCP communication for BMS integration.
Operating Conditions
Ambient temperature (cooling)
15°C a 46°C
Ambient temperature (heating)
-5°C a 25°C
Supply air temperature
12°C a 18°C
Operational relative humidity
30% a 80%
Maximum altitude without correction
1,000 m
Noise level (at 1m)
55 a 75 dB(A)
Energy efficiency class
A / B (INMETRO)
Nominal COP
3.0 a 3.8
Available Options
Customize your self-contained with additional accessories and features to meet your specific application needs.
Benefits
Simple Installation
All components integrated in a single unit drastically reduce installation time and cost. No need for refrigerant piping between units.
Easy Maintenance
Removable panels with front access to all components. Filters with quick-fit rails. Controller with fault diagnostics and alarm history.
High Efficiency
Latest generation scroll compressors with COP up to 3.8. EC fan and electronic expansion valve options for even greater part-load efficiency.
Industrial Reliability
Designed for 24/7 operation in demanding industrial environments. Complete electrical protections, alarms with history and 5-year extended compressor warranty.
Applications
