Compact Chillers

1 to 25 TR (3,024 to 75,600 kcal/h) - Solutions for small spaces

Compact liquid coolers developed for applications requiring high performance in limited spaces. Plug-and-play design with quiet operation and superior energy efficiency.

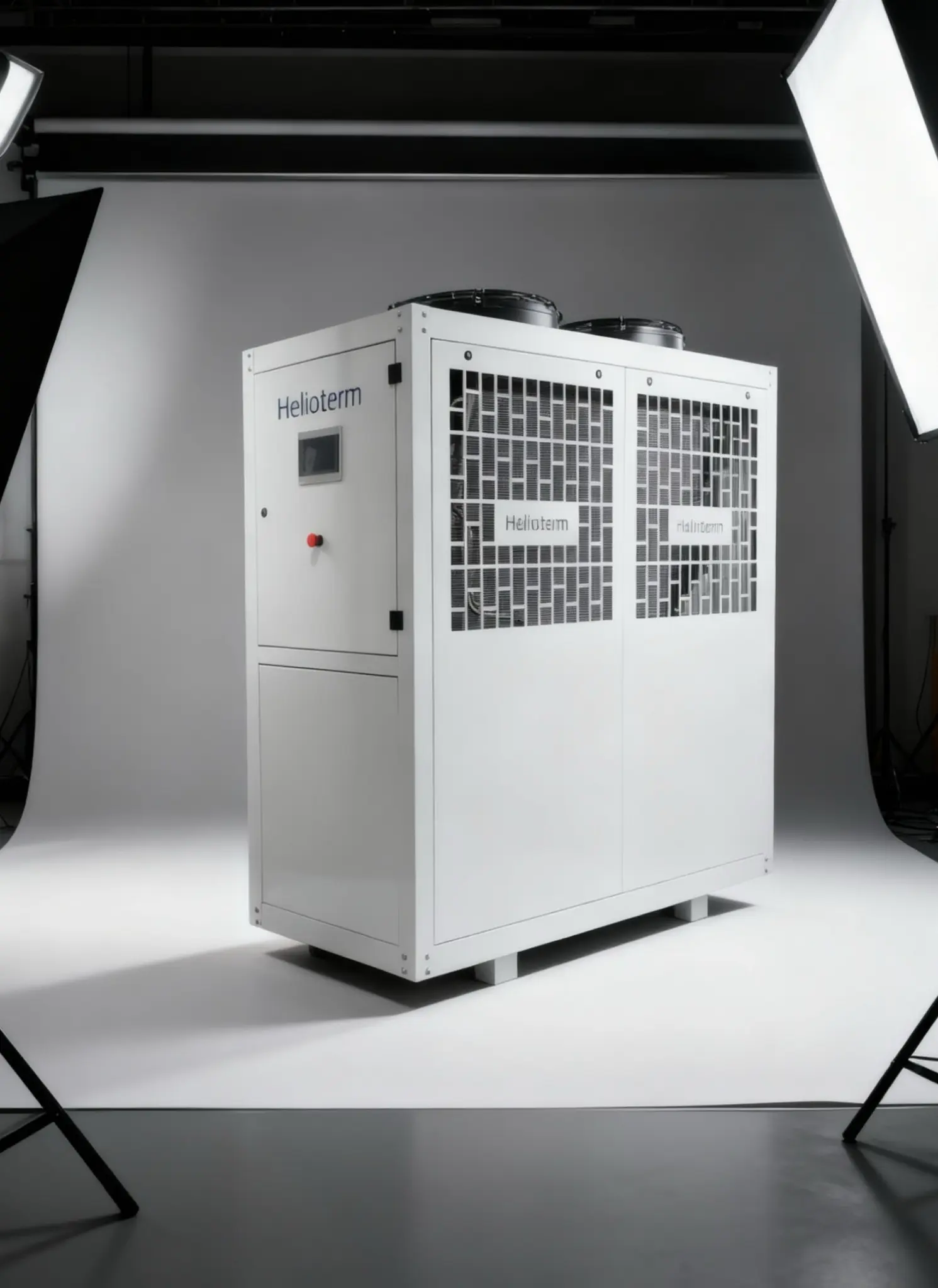

Compact Chillers

Main Features

Capacity from 1 to 25 TR (3,024 to 75,600 kcal/h)
Compact and modular design
Quiet operation (low noise level)
Plug-and-play system
High-efficiency scroll compressors
Microprocessed controller with digital display
Complete electrical protections
High-performance condenser
Brazed plate evaporator
Integrated water pump (optional)
Stainless steel water tank (optional)
Resistant electrostatic paint

Technical Specifications by Model

Complete line of HTC compact chillers with capacities from 2,100 to 73,200 kcal/h. All models use high-efficiency scroll compressors and R410A refrigerant.

Model HTC 03 AR

Cooling Capacity

Minimum Capacity:2,100 kcal/h
Maximum Capacity:4,410 kcal/h
Temperature Range:-8°C a 10°C

Compressor

Type:Scroll
Power:3 HP
Quantity:1 compressor(s)
Circuits:1 circuit(s)
Refrigerant:R410A

Hydraulics

Required Flow:2,26 m³/h
Failure Flow:1,58 m³/h
Operating Pressure:30 mca

Electrical Data

Voltage:3F (220/380/440 VCA) + N + T/60Hz
Installed Power:5,9 kVA
Operating Power:4,2 kW
COP:1,22

Nominal Current

220V / 380V / 440V:15,5 A / 9,0 A / 7,7 A

Structure

Dimensions (WxDxH):605 x 905 x 1080 mm
Weight:185 Kg
Connections:1" Entrada/Saída

Refrigerant

R410A

Compressor Type

Scroll

Condensation

Air Cooled

Standards

NR10 e NR12

Benefits

Space Saving

Compact design ideal for areas with limited physical space.

Easy Installation

Plug-and-play system that speeds up installation and startup.

Low Noise

Quiet operation, suitable for indoor environments.

High Efficiency

Scroll compressors with an excellent consumption/capacity ratio.

Applications

Plastic injection machines
CNC Machines
Laboratories
Medical equipment
Industrial processes
Graphic printing
Laser welding
Mold cooling
